PRR Class G22B gondolas

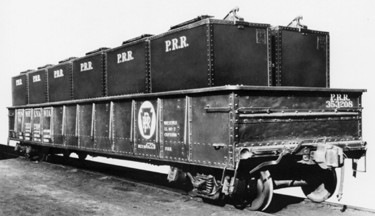

G22b, Photographer PRR Photo, Image from online auction, used by permission of seller.
PRR 353208G22bPRR Photo

No description for this class is available yet. Sorry. Would you like to write one?

Some stats:

ClassG22b
Diagram?yes
ModelWesterfield
Commentsconverted from G22
Qty Built491
Built1930 (rebuilt from G22, G22a)
Capcy200,000
Weight51,000
Capcy box1,288
Capcy heap320
Sidessteel
Floorsteel
Endsfixed
Sillstraight
Underframefish belly
I.L.46' 2-1/2"
I.W.9' 3-1/2"
I.H3' 0"
Truck center38' 0"
length over strikers48' 0"
coupled length50' 6"
panels13
height6' 4-3/4"
width extreme10' 0"

Types of trucks used

ClassCarNumbersTruck ClassTruck NameQty cars:
G22b  2F-F2
G22b  2F-F3Dual Trucks Span Bolster
G22b  2F-F4
Truck data is from PRR documents circa 1940's. Other truck classes may also have been used.

Cars on the PRR roster (as listed in the Official Railway Equipment Register (ORER)):

ClassCarNumberAAR ClassPRR Oct 44PRR Oct 48PRR Apr 52PRR Oct 53PRR Oct 58PRR Oct 63PRR Apr 68
G22b353000353460GB LG258292372426424437226
Roster data compiled by Rich Orr

Modeling Information:

Westerfield
G22HO1201G22 MODN., G22A, G22Bresin kit w/ decalsrebuilt w/ tight floor - discontinued
G22aHO1201G22 MODN., G22A, G22Bresin kit w/ decalsrebuilt w/ tight floor - discontinued
G22bHO1201G22 MODN., G22A, G22Bresin kit w/ decalsrebuilt w/ tight floor - discontinued
G22bHO1252G22/G22b Modernized, CK decalsresin kit w/ 1 piece body & decals-
G22bHO1254G22b rebuilt, SK decalsresin kit w/ 1 piece body & decals-

Photos online:

Report MarkClassDescriptionLocationDatePhotographer
PRR 353064G22bbuilders photo w/ HB1 containers (E10517)-10/6/1936PRR photo (B&W)
PRR 353064G22B---PRR Photo (B&W) from Modern Locos & Cars 1939

Photos in print:

ClassPublicationPageCar NoSchemeLocationDateComments
G22bCars of the Pennsy48PRR 353016CK-12/31w/ containers
G22bPennsy Power 3404PRR 353016--12/31-
G22bPRR Color Guide Vol 1110PRR 49079PK-mow-5/85-
G22bPRR Color Guide Vol 145PRR 353221SK1b-4/68w/ containers
G22bPRR Color Guide Vol 277PRR 353381PK---

Equipment Diagrams online:

Class(es)tracing #View
G22bE-93171elevation
G22bE-93171-Delevation

References:

  • KEY 9/80 - THE G22 AND RELATED CLASSES (Fischer, Ian S.)
      History, photos, diagrams, roster, bibliography
  • KEY 3/85 - Container Service on the PRR (Burg, Richard)
      History, photos, diagrams, roster, bibliography
