PRR Class H37 hoppers
|
| H37 |
PRR Class H37 hoppers |
|
No description for this class is available yet. Sorry. Would you like to write one?
| Class | H37 | H37a | H37b | H37c | H37d | H37e |
| Diagram? | yes | yes | yes | NO | NO | NO |
| Type | Open | Open | Open | Open | Open | Open |
| Capacity | 140,000 | 140,000 | 140,000 | - | - | - |
| Weight | 52,500 | 53,600 | 52,900 | - | - | - |
| Capacity box | 2,567 | 2,567 | 2,567 | - | - | - |
| Capacity Heap | 328 | 328 | 328 | - | - | - |
| # Panels | 15 | 15 | 15 | - | - | - |
| Side Type | girder | girder | girder | girder | girder | girder |
| # bays | 3 | 3 | 3 | - | - | - |
| Inside Length | 40' 9" | 40' 9" | 40' 9" | - | - | - |
| Length Over Sills | 42' 0" | 42' 0" | 42' 0" | - | - | - |
| Truck Centers | 32' 0" | 32' 0" | 32' 0" | - | - | - |
| Inside Width | 9' 5-7/8" | 9' 7-5/8" | 9' 7-5/8" | - | - | - |
| Extreme Width | 10' 6" | 10' 6" | 10' 5-1/8" | - | - | - |
| Height | 10' 9-11/16" | 10' 10-5/8" | 10' 10-5/8" | - | - | |
| Comments | - | - | - | - |
| Class | Car | Numbers | Truck Class | Truck Name | Qty cars: |
|---|---|---|---|---|---|
| H37 | 2E-F2a | ||||
| H37b | 2E-F2b | Holland stabilizer | |||
| Truck data is from PRR documents circa 1940's. Other truck classes may also have been used. | |||||
| Class | Car | Number | AAR Class | PRR Oct 44 | PRR Oct 48 | PRR Apr 52 | PRR Oct 53 | PRR Oct 58 | PRR Oct 63 | PRR Apr 68 |
|---|---|---|---|---|---|---|---|---|---|---|
| H37 | 270501 | 270950 | HT | - | - | - | - | 450 | 449 | 433 |
| H37a | 270951 | 272200 | HT | - | - | - | - | 1250 | 1249 | 1220 |
| H37b | 272201 | 273090 | HT | - | - | - | - | 640 | 889 | 873 |
| H37c | 270501 | 270950 | HT | - | - | - | - | - | - | 8 |
| H37d | 270951 | 272200 | HT | - | - | - | - | - | - | 11 |
| H37e | 272201 | 273090 | HT | - | - | - | - | - | - | 9 |
| Roster data compiled by Rich Orr | ||||||||||
| Stewart | |||||
| H37b | HO | 10370 | 70T 13P Hopper Undecorated | plastic w/ molded on details | - |
| H37b | HO | 10373 | 70T 13P Hopper Pennsylvania (Six Pack) | plastic w/ molded on details | - |
| Class | Publication | Page | Car No | Scheme | Location | Date | Comments |
|---|---|---|---|---|---|---|---|
| H37 | PRR Color Guide Vol 1 | 113 | PRR 270925 | SK2a | - | 9/69 | - |
| H37 | PRR Steel Open Hoppers | 97 | PRR 270506 | SK | Altoona, PA | 10/12/57 | - |
| H37a | Pennsy Power 3 | 407 | PRR 272047 | - | - | - | - |
| H37a | PRR Color Guide Vol 1 | 61 | PRR 271641 | SK2b | - | 5/72 | - |
| H37a | PRR Steel Open Hoppers | 97 | PRR 271136 | SK2 | Altoona, PA | 1/20/58 | - |
| H37a | PRR Steel Open Hoppers | 98 | PRR 271136 | SK2 | Altoona, PA | 1/20/58 | - |
| H37a | PRR Steel Open Hoppers | 99 | PRR 272047 | SK2 | - | 58 | - |
| H37b | PRR Color Guide Vol 1 | 61 | PRR 272218 | PK | - | - | - |
| H37b | PRR Steel Open Hoppers | 101 | PRR 272900 | SK2 | Holidaysburg, PA | 9/77 | whitelined |
| H37b | PRR Steel Open Hoppers | 98 | PRR 272274 | SK2 | Altoona, PA | 5/29/58 | - |
| Class(es) | tracing # | View |

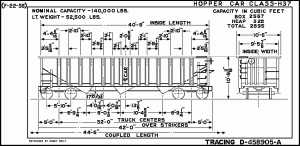

| H37 | D-458905-A | elevation |
| H37a | D-458905-A | elevation |
| H37b | D-458905-A | elevation |
