PRR Class H36 hoppers
|
|
| H36 |
|
No description for this class is available yet. Sorry. Would you like to write one?
Some stats:
| Class | H36 |
| Diagram? | yes |
| Type | Open |
| Capacity | 140,000 |
| Weight | 52,300 |
| Capacity box | 2,567 |
| Capacity Heap | 328 |
| # Panels | 15 |
| Side Type | girder |
| # bays | 3 |
| Inside Length | 40' 9" |
| Length Over Sills | 42' 0" |
| Truck Centers | 32' 0" |
| Inside Width | 9' 7-5/8" |
| Extreme Width | 10' 6" |
| Height | 10' 8-1/2"
|
Types of trucks used
| Class | Car | Numbers | Truck Class | Truck Name | Qty cars: |
|---|
| H36 | | | 2E-F22 | A.S.F. Ride control
| |
| Truck data is from PRR documents circa 1940's. Other truck classes may also have been used. |
Cars on the PRR roster (as listed in the Official Railway Equipment Register (ORER)):
| Class | Car | Number | AAR Class | PRR Oct 44 | PRR Oct 48 | PRR Apr 52 | PRR Oct 53 | PRR Oct 58 | PRR Oct 63 | PRR Apr 68 |
|---|
| H36 | 269001 | 270500 | HT | - | - | - | - | 700 | 700 | 691
|
| Roster data compiled by Rich Orr |
Photos in print:

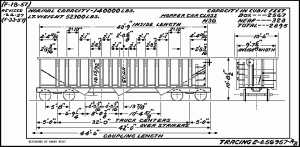

Equipment Diagrams online:
| Class(es) | tracing # | View |
| H36 | E-456957-B | elevation |
Plans and diagrams in print:
| Applicable Classes | Type | Publication | Page | Description | Tracing Number |
|---|
| H36 | Arrangement of Lettering | PRR Compendium Vol 1 | 84 | Plain key w/ "Pennsylvania" - H36 shown |
|
