PRR Class H24 hoppers
|
|
| H24 |
|
No description for this class is available yet. Sorry. Would you like to write one?
Some stats:
| Class | H24 |
| Diagram? | yes |
| Type | Open |
| Capacity | ? |
| Weight | 60,000 |
| Capacity box | 2,900 |
| Capacity Heap | 326 |
| # Panels | 14 |
| Side Type | girder |
| # bays | 5 |
| Inside Length | 46' 6" |
| Length Over Sills | 48' 4" |
| Truck Centers | 38' 4" |
| Inside Width | 9' 4-3/8" |
| Extreme Width | 10' 2" |
| Height | 11' 3-3/4" |
| Comments
|
|
Types of trucks used
| Class | Car | Numbers | Truck Class | Truck Name | Qty cars: |
|---|
| H24 | | | 2F-F1 | Crown
| |
| Truck data is from PRR documents circa 1940's. Other truck classes may also have been used. |
Cars on the PRR roster (as listed in the Official Railway Equipment Register (ORER)):
| Class | Car | Number | AAR Class | PRR Oct 44 | PRR Oct 48 | PRR Apr 52 | PRR Oct 53 | PRR Oct 58 | PRR Oct 63 | PRR Apr 68 |
|---|
| H24 | 180002 | - | HT | 1 | - | - | - | - | - | -
|
| Roster data compiled by Rich Orr |
Photos online:
| Report Mark | Class | Description | Location | Date | Photographer |
| PRR 180002 | H24 | builders photo | - | ? | PRR photo (B&W) |
Photos in print:

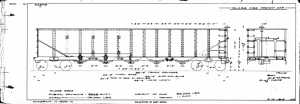

Equipment Diagrams online:
| Class(es) | tracing # | View |
| H24 | N-400-A | elevation |
| H24 | 53073 | elevation |
Plans and diagrams in print:
| Applicable Classes | Type | Publication | Page | Description | Tracing Number |
|---|
| H24 | Class Diagram | PRR Pass. & Frt. Car Diagrams | 85 |
|
|
| H24 | Plan | Model Railroader-7/78 | 84 | No.180002 |
|
