PRR Class GLD gondolas
|
| GLd |
PRR Class GLD gondolas |
|
No description for this class is available yet. Sorry. Would you like to write one?
| Class | GLd |
| Diagram? | yes |
| Comments | self clearing |
| Capcy | 100,000 |
| Weight | 38,700 |
| Capcy box | 1,880 |
| Capcy heap | 215 |
| Sides | steel |
| Floor | hopper |
| Ends | fixed |
| Sill | straight |
| Underframe | hopper bottom |
| I.L. | 30' 6" |
| I.W. | 9' 5-1/2" |
| I.H | - |
| Truck center | 21' 11" |
| length over strikers | 31' 11" |
| coupled length | 34' 5" |
| panels | 8 |
| height | 10' 8" |
| width extreme | 10' 3-3/8" |
| source |
| Class | Car | Numbers | Truck Class | Truck Name | Qty cars: |
|---|---|---|---|---|---|
| GLd | 2D-F3 | U.S.R.A | |||
| GLd | 2D-F3a | U.S.R.A | |||
| Truck data is from PRR documents circa 1940's. Other truck classes may also have been used. | |||||
| Class | Car | Number | AAR Class | PRR Oct 44 | PRR Oct 48 | PRR Apr 52 | PRR Oct 53 | PRR Oct 58 | PRR Oct 63 | PRR Apr 68 |
|---|---|---|---|---|---|---|---|---|---|---|
| GLd | 220000 | 220299 | HM | 297 | 296 | 109 | 34 | 3 | - | - |
| Roster data compiled by Rich Orr | ||||||||||
| Accurail | |||||
| GLd | HO | 2506 | USRA 55-ton hoppers, Pennsylvania, CK | plastic | ? |
| GLd | HO | 2537 | USRA 55-ton hoppers, Pennsylvania, PK Black | plastic | ? |
| GLd | HO | 2544 | USRA 55-ton hoppers, Pennsylvania, SK | plastic | ? |
| GLd | HO | 2567 | USRA 55-ton hoppers, Pennsylvania, PK Black | plastic | ? |
| Class | Publication | Page | Car No | Scheme | Location | Date | Comments |
|---|---|---|---|---|---|---|---|
| GLd | PRR Steel Open Hoppers | 140 | PRR 220153 | CK | - | - | - |
| GLd | PRR Steel Open Hoppers | 141 | PRR 220077 | NK | East Altoona, PA | 6/19/36 | - |
| GLd | PRR Steel Open Hoppers | 142 | PRR 220098 | CK | East Altoona, PA | 6/19/36 | - |
| GLd | PRR Steel Open Hoppers | 159 | PRR 220232 | CK | Camp Hill, PA | 9/1/46 | - |

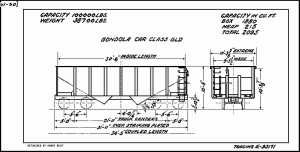

| Class(es) | tracing # | View |
| GLd | E-93171 | elevation |
