PRR Class H47 hoppers

PRR Class H47 Covered Hoppers

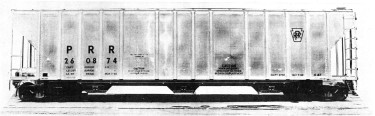

PRR 260874 H47,H47a PRR Photo

General information:

The class H-47 and H-47a comprised a total of 140 3 compartment, 4750 cu. covered hoppers built by the Magor Car Corporation in 1965. They were delivered in the final PRR scheme, with black lettering on an unpainted aluminum carbody. They were delivered as follows:

Class H-47 - PRR 260871-PRR 260970, 100 cars, Magor Lot #W-6570, Serial #'s 83052-83151, delivered 5/65
Class H-47a - PRR 260656-PRR 260705, 50 cars, Magor Lot #15007, Serial #'s 83660-83709, delivered 12/65
20-3/4" X 47' 9-1/2" trough roof hatch cover opening, three 24" X 30" center discharge gravity outlets, morton steel running boards.

(source, The Magor Car Corporation by Ed Kaminski -published by Signature Press, 2001)

Some stats:

Class	H47a	H47
Diagram?	NO-Wayner	NO-Wayner
Type	Covered	Covered
Capacity	200,000	200,000
Weight	56,200	56,200
Capacity box	4,750	4,750
# Panels	15	15
Side Type	girder	girder
# bays	3	3
Inside Length	54' 1-⁵/₈"	54' 1-⁵/₈"
Length Over Sills	55' 1"	55' 1"
Truck Centers	45' 2"	45' 2"
Inside Width	9' 10"	9' 10"
Extreme Width	10' 5-¹¹/₃₂"	10' 5-¹¹/₃₂"
Height	14' 6-²⁵/₃₂	14' 6-²⁵/₃₂
Comments	Aluminum construction	Aluminum construction

Cars on the PRR roster (as listed in the Official Railway Equipment Register (ORER)):

Class	Car	Number	AAR Class	PRR Oct 44	PRR Oct 48	PRR Apr 52	PRR Oct 53	PRR Oct 58	PRR Oct 63	PRR Apr 68
H47	260871	260970	LO	-	-	-	-	-	-	100
H47a	260656	260705	LO	-	-	-	-	-	-	50
Roster data compiled by Rich Orr

Modeling Information:

ExactRail
H47a	HO	EP-81004-x	MAGOR 4750 COVERED HOPPER - PRR	RTR plastic w/ separate details	-

Photos online:

Report Mark Class Description Location Date Photographer

PRR 260874 H47 Builders Photo, side view Altoona, PA - PRR Photo (B&W), collection of Rob Schoenberg

Photos in print:

Class	Publication	Page	Car No	Scheme	Location	Date	Comments
H47	Keystone Vol 35, #2	59	PRR 260874	PK	-	-	Builders photo
H47	Keystone Vol 35, #2	60	PRR 260874	PK	-	-	Builders photo
H47	Keystone Vol 35, #2	63	PRR 260887	PK	-	-	-
H47a	PRR Color Guide Vol 2	74	PRR 260885	PK	-	-	-
H47a	PRR Color Guide Vol 3	79	PRR 260671	PK	-	-	-
H47a	The Magor Car Corporation	111	PRR 260661	PK	-	-	-

Equipment Diagrams online:

Class(es) tracing # View

H47,H47a E-463817-B-A elevation

Plans and diagrams in print:

Applicable Classes	Type	Publication	Page	Description	Tracing Number
H47,H47a	Class Diagram	PRR Pass. & Frt. Car Diagrams	87

References:

KEY 12/83 - PRR Covered Hoppers of the 1960s (Fischer, Ian S.)
KEY 6/02 - Lettering Schemes for PRR Covered Hopper Cars, 1931 to 1968 (Tipton, Rick)
