PRR Class H40 hoppers

PRR Class H40 Airslide Covered Hoppers

H40

General information:

H40 cars are Air-Slide covered hoppers with 1 pocket, 70 ton trucks and 2600 cu. ft. capacity.

Some stats:

Class	H40
Diagram?	NO
Type	Covered
Comments

Cars on the PRR roster (as listed in the Official Railway Equipment Register (ORER)):

Class	Car	Number	AAR Class	PRR Oct 44	PRR Oct 48	PRR Apr 52	PRR Oct 53	PRR Oct 58	PRR Oct 63	PRR Apr 68
H40	260421	260470	LO	-	-	-	-	-	-	50
H40	261370	261460	LO	-	-	-	-	-	41	91
Roster data compiled by Rich Orr

Modeling Information:

Atlas
H40	N	H40 hopper	-	RTR plastic w/ molded grabs	-
Con-Cor
H40	HO	9752	40' Airslide Covered Hopper - Modern -Pennsylvania	plastic kit	-
H40	HO	197051	GATX Airslide Covered Hopper Assembled	plastic rtr

Photos online:

Report Mark Class Description Location Date Photographer

PRR 261443 H40 Builders photo 3/4 view broken link 5/25/1961 PRR Photo (B&W) (From the PRRT&HS web site)

Photos in print:

Class	Publication	Page	Car No	Scheme	Location	Date	Comments
H40	Keystone Vol 35, #2	46	GACX 44148	GACX	-	-	caption incorrectly has # as 44149
H40	Keystone Vol 35, #2	46	PRR 261449	SK2b	-	-	-
H40	Keystone Vol 35, #2	47	PRR 261457	SK2b	Mansfield, OH	4/1976	-
H40	Keystone Vol 35, #2	48	PRR 261431	SK2b	-	-	-
H40	Keystone Vol 35, #2	58	PRR 260445	PK	-	-	-
H40	Keystone Vol 35, #2	58	PRR 261390	PK	-	-	-
H40	Keystone Vol 35, #2	61	PRR 260428	PK	Hollidaysburg, PA	1986	-
H40	Keystone Vol 35, #2	61	PRR 261398	PK	-	6/1982	-
H40	PC Color Guide	98	PC 878256	PC	Reading, PA	2/16/74	nee PRR 261425
H40	PRR Color Guide Vol 1	63	PRR 261444	SK2b	-	11/83	-
H40	PRR Color Guide Vol 2	71	PRR 261426	SK2b	-	10/80	-

Equipment Diagrams online:

Class(es) tracing # View

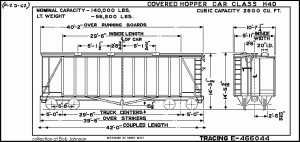

H40 E-466044-A elevation

Plans and diagrams in print:

Applicable Classes	Type	Publication	Page	Description	Tracing Number
H40	Arrangement of Lettering	Keystone Vol. 35, No. 2	56	PK	D462027-A
H40	Arrangement of Lettering	PRR Compendium Vol 1	75	Plain key - H40 shown
H40	Plan	Rail Model Craftsman-7/85	64	Nos.261370-261419,261420-261470

References:

KEY 12/83 - PRR Covered Hoppers of the 1960s (Fischer, Ian S.)
KEY 6/02 - Lettering Schemes for PRR Covered Hopper Cars, 1931 to 1968 (Tipton, Rick)

Data in General Information section is from an undated "PENNSYLVANIA RAILROAD SPECIAL EQUIPMENT MANUAL"
